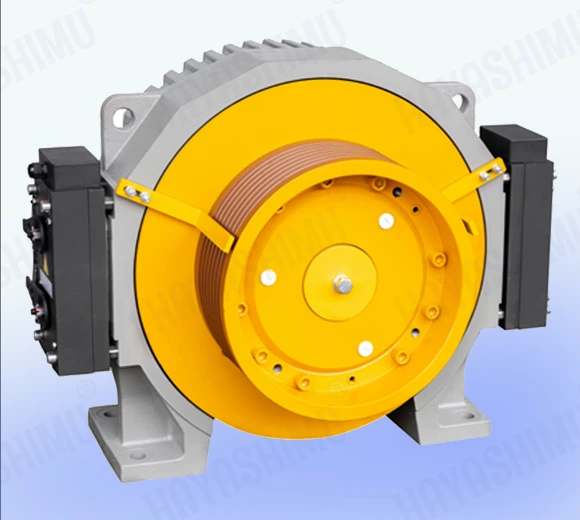

DAA20220DY OTIS TRACTION MACHINE

Specifications:

Rated payload: 8000kg-1150kg
Rated speed: 2.0m/s-2.5m/s
Protection Class: IP41
Insulation Class: F
Number of motor poles: 32
Maximum axial load: 3,500 kg
Recommended lifting height: 135m
Brake current: 1.53 A (20°C)
Braking force (dual arms): 1,100 Nm to 1,450 Nm
Operating mode: S5 40%
