Elevator Counter Guiderail Bracket

Description

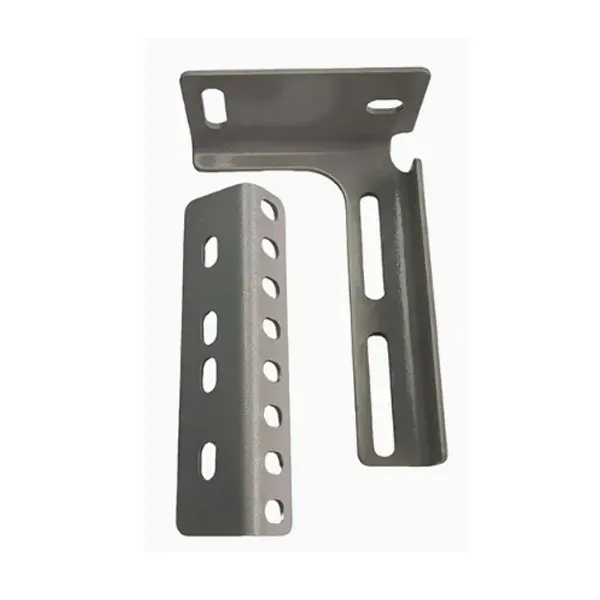

Elevator Counter Guiderail Bracket

Elevator Counterweight Guiderail Bracket is a fundamental structural component designed to secure the counterweight rails firmly to the hoistway wall. While often smaller than main rail brackets, these components are critical for maintaining the balance and alignment of the entire elevator system. By preventing rail deflection and swaying, our brackets ensure that the counterweight travels smoothly and silently, directly contributing to the overall ride quality of the cabin.

Fabricated from high-grade structural steel, these brackets provide the rigid foundation necessary to handle the dynamic loads of high-speed elevators and heavy-duty freight systems.

Key Technical Strengths

• High-Tensile Structural Steel: Built to resist the intense vibrations and lateral forces generated by the counterweight during high-speed travel.

• Precision Slotted Design: Features adjustable mounting holes that allow installers to achieve millimeter-perfect rail plumbness, even when building walls are slightly uneven.

• Vibration Dampening: The geometry of our brackets is optimized to absorb resonance, preventing noise from traveling through the building structure and into the elevator cabin.

• Industrial Anti-Corrosion Finish: Treated with a durable powder coating or galvanization to withstand the humid and dusty conditions typically found in elevator shafts.

Reliability & Alignment Excellence

• Universal Compatibility: Specifically designed to fit standard counterweight T-rails (such as T45, T50, and T70).

• Load-Bearing Security: Engineered to meet strict safety factors, ensuring the counterweight remains locked within its travel path even during emergency stops.

• Simplified Installation: Standardized bolt patterns allow for quick mounting to concrete, brick, or steel hoistway beams, significantly reducing labor time on-site.

Technical Specifications

Why Choose Our Counterweight Brackets?

Misaligned counterweight rails are one of the most common causes of “phantom” noises and vibrations in an elevator. Our Elevator Counterweight Guiderail Brackets eliminate these issues at the source by providing a stable, unyielding connection to the building. When you source from LiftPartsCN, you are investing in structural hardware that guarantees a quieter shaft and a longer lifespan for your guide shoes and rails.
