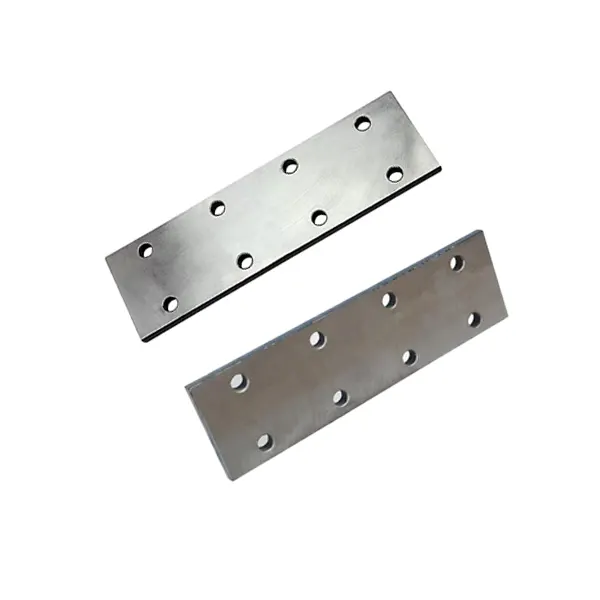

Elevator Counterweight Guide Rail Fishplate
Features:
- MaterialHigh-Grade Carbon Steel (Q235 / Q275)
- Surface TreatmentBlackened, Galvanized, or Plain Oil
- Hole Configuration4-Hole or 8-Hole standard patterns
Description
Description
Elevator Counterweight Guide Rail Fishplate
Is your elevator system experiencing excessive vibration or noisy transitions? Often, the culprit isn’t the motor or the car—it’s a weak connection in the guide rail. If your fishplates aren’t machined to perfection, the counterweight guide rails can misalign, causing premature wear on the guide shoes and a bumpy ride for passengers.
Our Elevator Counterweight Guide Rail Fishplates provide the rock-solid connection your system requires. Engineered for heavy-duty industrial use, these plates ensure that your guide rails act as a single, seamless vertical path.
Why Precision Fishplates Matter
The fishplate is the backbone of the rail joint. Even a 0.1mm deviation can lead to “joint-bump,” which accelerates mechanical fatigue. Our plates are designed to meet strict international safety standards, ensuring your counterweight system stays balanced and secure.
Key Features and Benefits
-
Seamless Alignment: Precision-milled surfaces eliminate gaps at the rail joints.
-
High-Tensile Steel: Manufactured from premium Q235 or better grade steel for maximum durability.
-
Corrosion Resistance: Treated with an anti-rust coating to withstand humid hoistway environments.
-
Standardized Compatibility: Fits T-type rails commonly used in the industry (T45, T50, T70).
-
Easy Installation: Pre-drilled holes align perfectly with standard rail patterns, saving time on-site.
Technical Specifications
| Attribute | Specification |
| Material | High-Grade Carbon Steel (Q235 / Q275) |
| Compatible Rail Types | T45/A, T50/A, T70/B (Counterweight Rails) |
| Surface Treatment | Blackened, Galvanized, or Plain Oil |
| Hole Configuration | 4-Hole or 8-Hole standard patterns |
| Tolerance | Strictly following ISO/CE standards |
Elevator Counterweight Guide Rail Fishplate data
