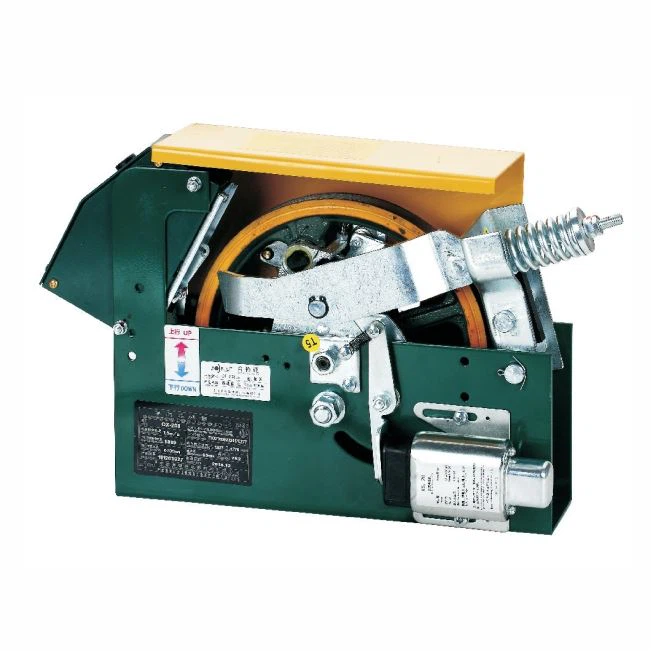

Elevator Overspeed Governor OX-208

Description

Product introduction

Elevator overspeed governor OX-208, One-way Governor.

Covered specifications (Rated speed): ≤0.63m/s; 1.0m/s; 1.5~1.6m/s; 1.75m/s

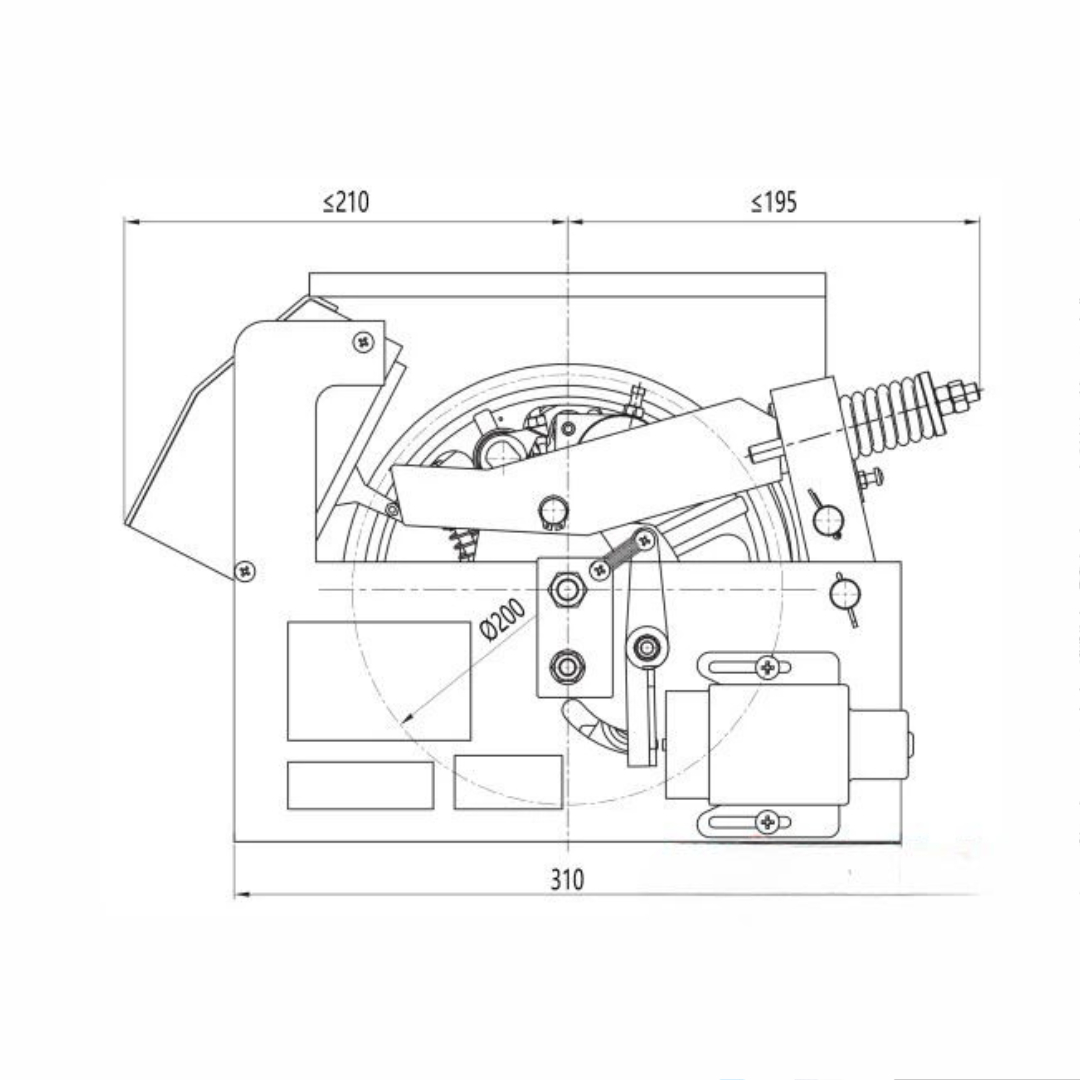

Sheave diameter: φ200 mm

Wire rope diameter: φ6 mm

Pulling force: ≥500N

Tension device: standard OX-200, optional OX-300

Power supply voltage: standard AC220V, optional DC24V

Work location: Car side or counterweight side

Upward control: permanent- magnet synchronous traction machine brake, counterweight safety gear

Downward control: safety gear

Remote control: operation and electrical switch reset can be tested electrically; the mechanical mechanism can reset automatically

Product parameter (specification)

Type – Elevator parts

Category – Elevator overspeed governor

Brand – Aodepu

Model – OX-208

Applicable – General

Warranty Time – 1year

Certificates – ISO9001
