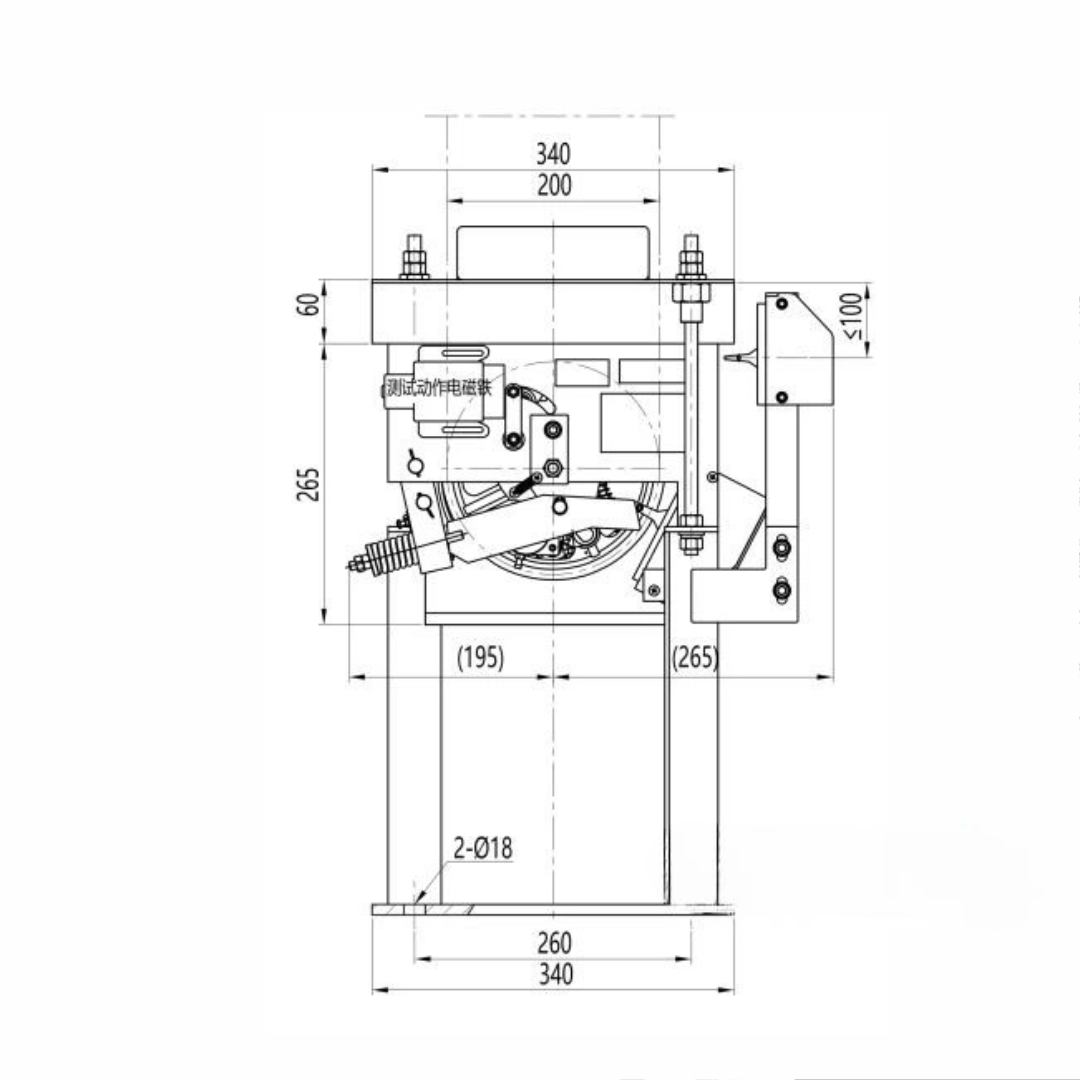

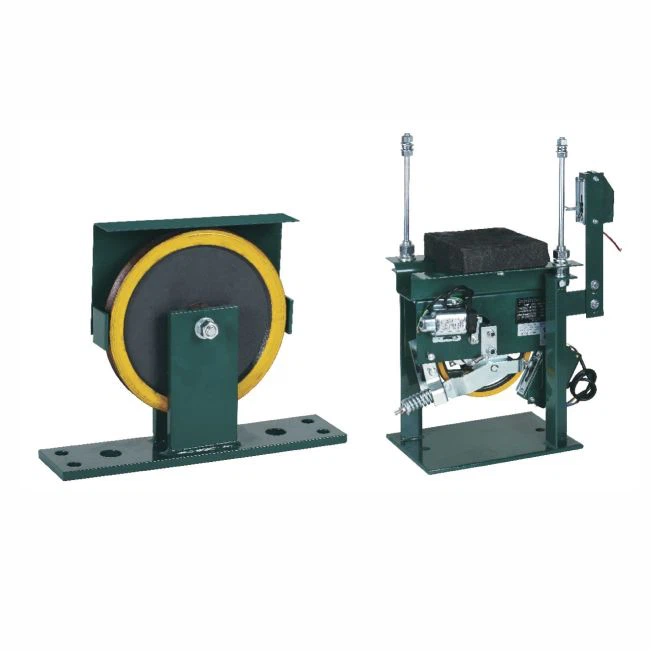

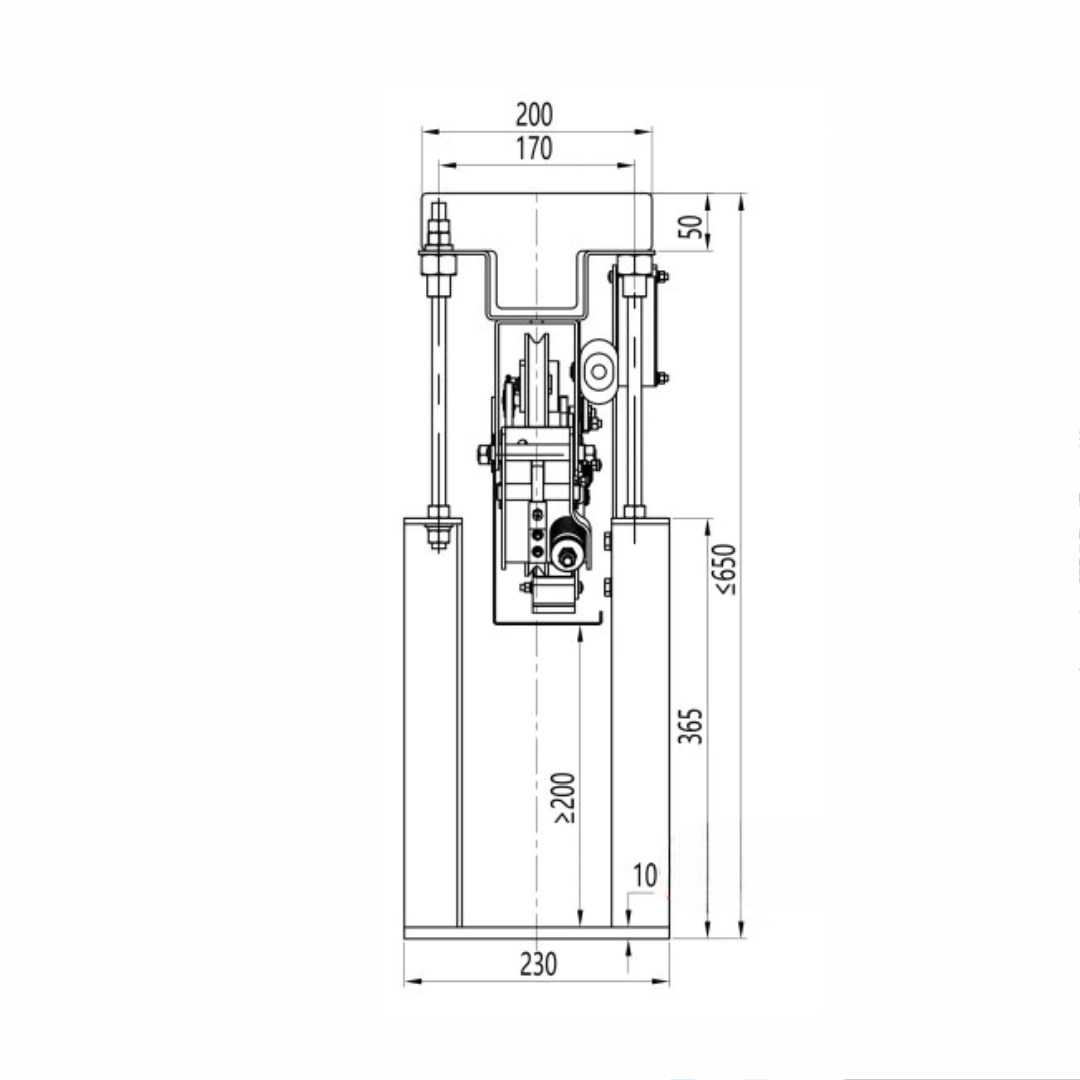

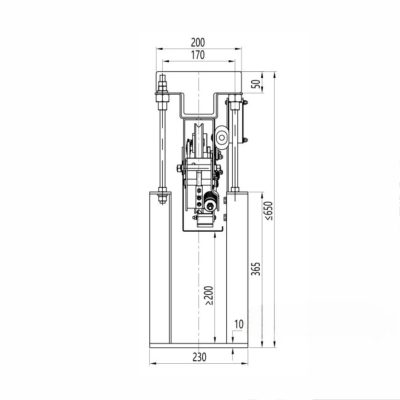

Elevator Overspeed Governor OX-208(A)

Description

Product introduction

Elevator overspeed governor OX-208(A), One-way Governor.

Covered specifications(Rated speed) :≤0.63m/s; 1.0m/s; 1.5~1.6m/s; 1.75m/s

Sheave diameter: φ200mm

Wire rope diameter: φ6 mm

Pulling force: ≥500N

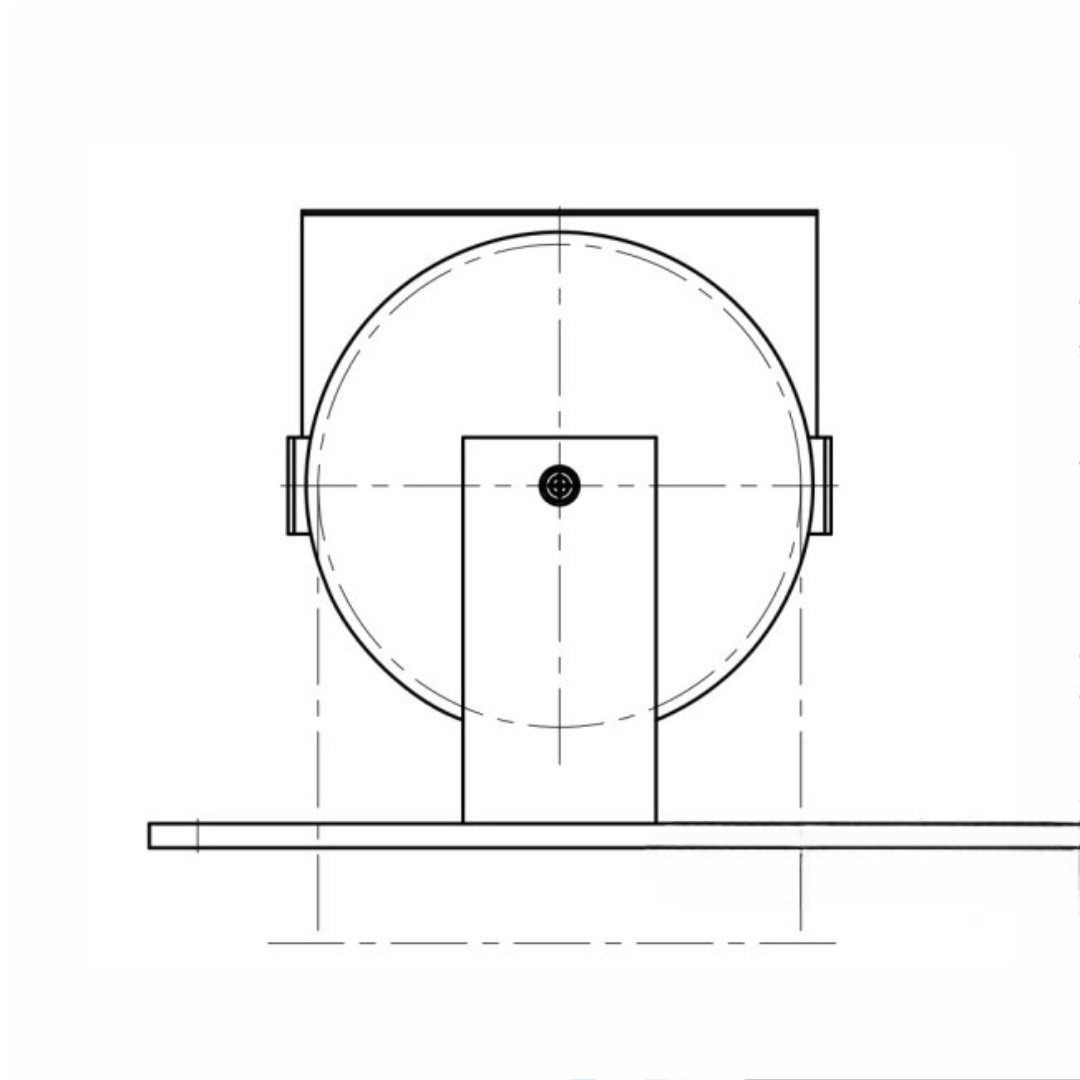

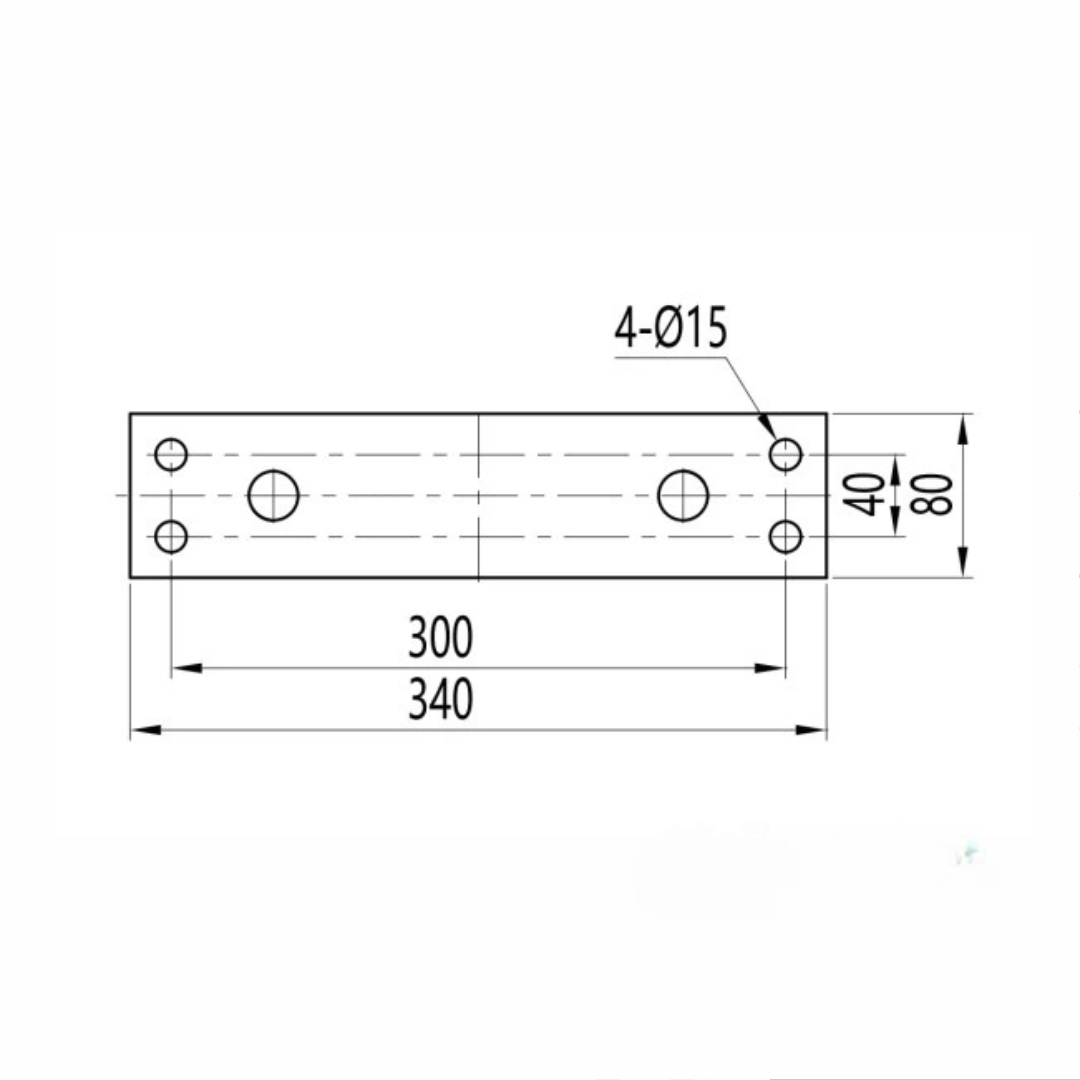

Tension device: (Form a complete set of matching, need not choose)

Power supply voltage: standard AC220V, optional DC24V;

Work location: Car side or counterweight side

Upward control: permanent- magnet synchronous traction machine brake, counterweight safety gear

Downward control: safety gear

Remote control: operation and electrical switch reset can be tested electrically; the mechanical mechanism can reset automatically

The speed signal is connected to the safety circuit, the reset switch, andthe test action electromagnet plugged into a power supply according to the requirements of the coil voltage.

Product parameter (specification)

Type  – Elevator parts

Category – Elevator overspeed governor

Brand – Aodepu

Model – OX-208(A)

Applicable – General

Warranty Time – 1year

Certificates – ISO9001
