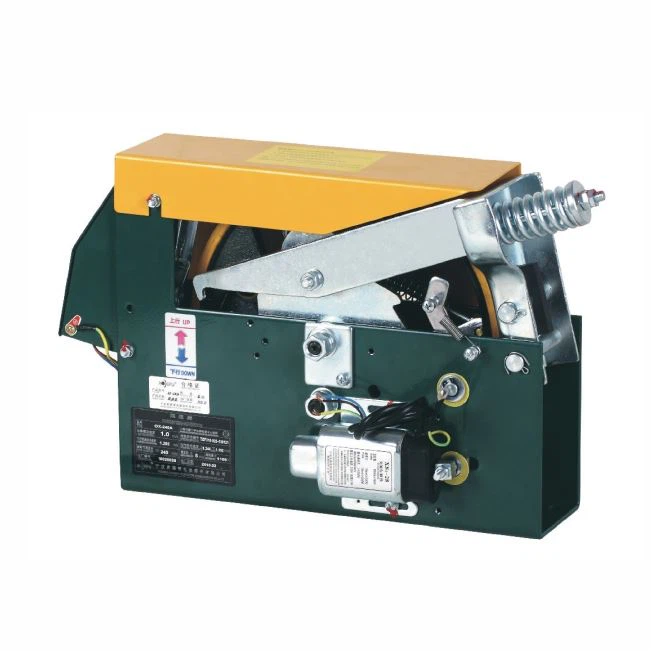

Elevator Overspeed Governor OX-240A

Description

Product introduction

Elevator overspeed governor OX-240A, One-way Governor.

Cover Norm (Rated speed) :≤0.63m/s; 1.0m/s; 1.5~ 1.6m/s; 1.75 m/s;

sheave diameter:中240 mm

Wire rope diameter: standardφ8 mm, optionalφ6 mm(partial velocity)

Pulling force:≥500N

Tension device: standard 0X-300, optional 0X-200

Power supply voltage: standard AC220V, optional DC24V;

Work location: Car side or counterweight side

Upward control: permanent-magnet synchronous traction machine brake, counterweight safety gear

Downward control: safety gear

Remote control: operation and electrical switch reset can be tested electrically; mechanical mechanism can reset automatically

Product parameter (specification)

Type – Elevator parts

Category – Elevator overspeed governor

Brand – Aodepu

Model – OX-240A

Applicable – General

Warranty Time – 1year

Certificates – ISO9001
