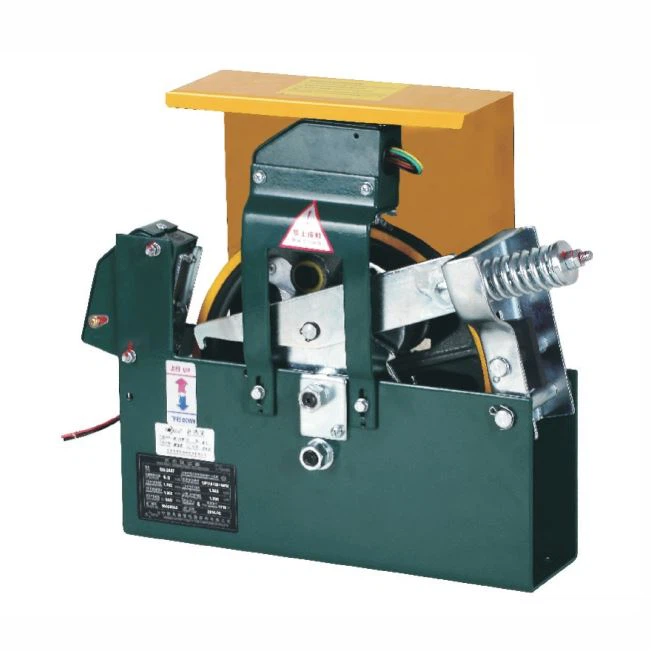

Elevator Overspeed Governor OX-240F

Description

Product introduction

Elevator overspeed governor OX-240F, Return Governor.

Covered specifications (Rated speed): ≤0.63m/s; 1.0 m/s; 1.5~1.6m/s; 1.75m/s; 2.0m/s; 2.5m/s

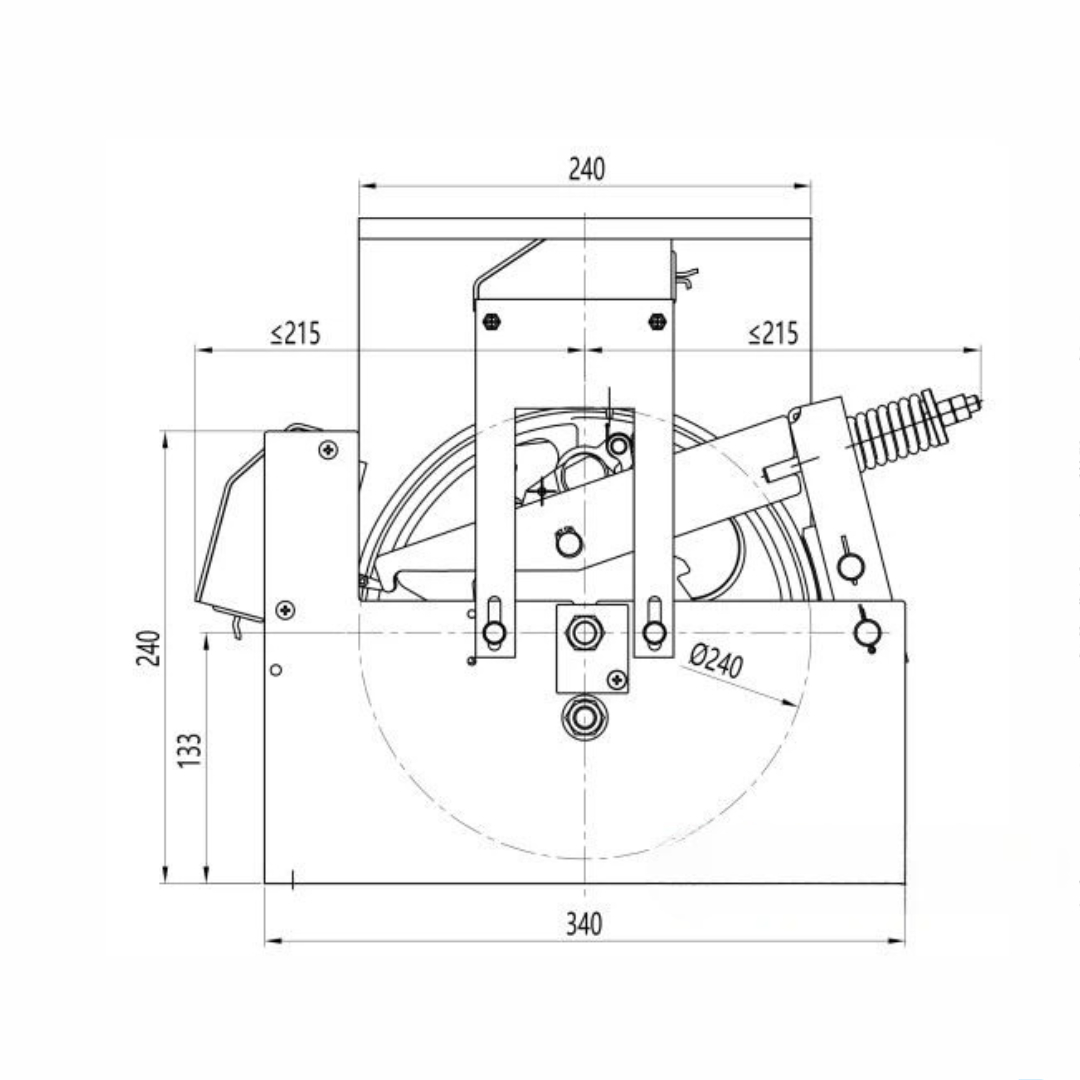

sheave diameter: φ240 mm

Wire rope diameter: standard φ8 mm, optional φ6 mm(partial velocity)

Pulling force: ≥500N

Tension device: standard OX-300, optional OX-200

Work location: Car side or counterweight side

Upward control: permanent-magnet synchronous traction machine brake, counterweight safety gear Clip rope (mechanical trigger type)

Downward control: safety gear

Product parameter (specification)

Type – Elevator parts

Category – Elevator overspeed governor

Brand – Aodepu

Model – OX-240F

Applicable – General

Warranty Time – 1year

Certificates – ISO9001
