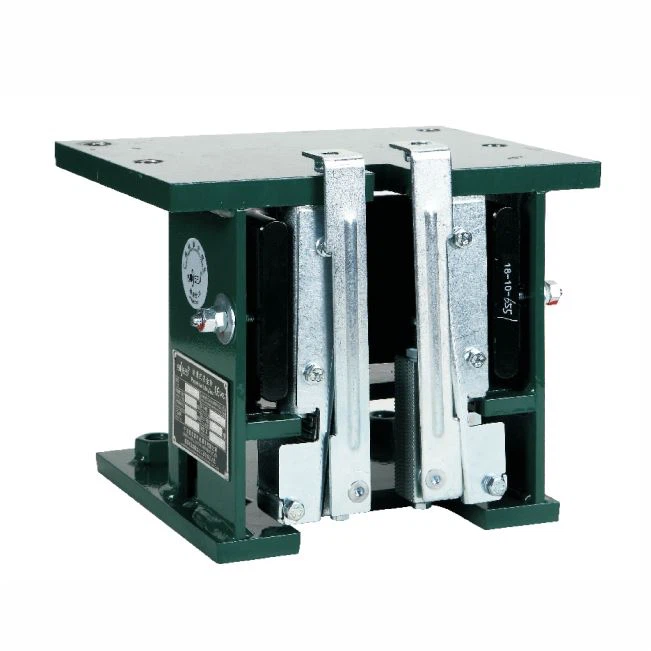

Elevator Safety Gear OX-188A
Elevator safety gear series
OX-188A
Progressive Safety Gear
Original
Description
Description
Product introduction
Elevator safety gear OX-188A, Progressive safety gear.
Rated speed: ≤2.5m/s
Total permit system quality: 1500~5800kg
Matching guide rail: ≤16mm(guide rail width)
Structure form: U-type plate spring, double moving wedge
Pulling form: double pulling (standard M10, optional M8)
Installation position: car side, counterweight side
Product parameter (specification)
Type – Elevator parts
Category – Elevator safety gear
Brand – Aodepu
Model – OX-188A
Applicable – General
Warranty Time – 1 year
Certificates – ISO9001
