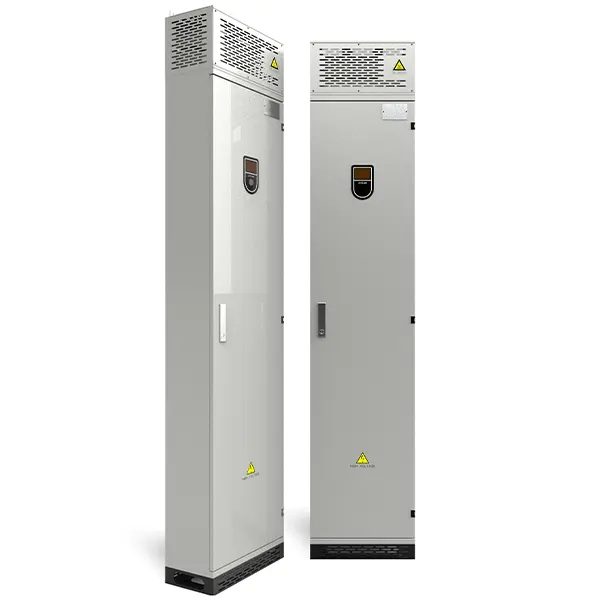

HP MONT MTCC-W MRL Elevator Control Panel
Features:
- Max Speed: Supports speeds up to 4 m/s.
- Max Floors: Capable of managing up to 48 floors.
- Power Supply: Standard options include three-phase 380VAC or 220VAC
Description
Description
HP MONT MTCC-W MRL Elevator Control Panel
HP MONT MTCC-W MRL Elevator Control Panel – The Ultimate Space-Saving Solution
The HP MONT MTCC-W is a state-of-the-art integrated control system specifically engineered for Machine-Roomless (MRL) elevator configurations. By eliminating the need for a bulky machine room, this panel allows for a more flexible architectural design, often fitting discreetly within the elevator shaft or a slim cabinet beside the landing door.
Powered by the renowned MONT70 series integrated controller, the MTCC-W combines high-speed performance with the robust safety protocols required for modern vertical transportation.
Technical Excellence & Scalability
Don’t let the compact MRL design fool you—this panel is built for high-demand environments:
-
High-Speed Capability: Supports travel speeds of up to 4 m/s, making it ideal for mid-to-high-rise buildings.
-
Extensive Range: Effortlessly manages up to 48 floors.
-
Universal Motor Support: Fully compatible with both Permanent Magnet Synchronous Motors (PMSM) and traditional Asynchronous motors.
-
Power Versatility: Available in standard three-phase 380VAC or 220VAC configurations to match your local power grid.
Uncompromising Safety Standards
Safety is built into the hardware, not added as an afterthought. The MTCC-W meets strict national safety standards, including:
-
UCMP (Unintended Car Movement Protection): Advanced detection to prevent the car from moving accidentally.
-
Door Lock Short-Circuit Protection: Instant monitoring to ensure doors are safely locked before and during travel.
Smart Features for Modern Maintenance
Maintenance doesn’t have to be a headache. The MTCC-W is designed to help technicians work faster and more accurately:
-
On-Board Diagnostics: A built-in floor display and status indicator lights allow for instant on-site troubleshooting without extra equipment.
-
Simplified Wiring Architecture: The intelligent interface board reduces the amount of physical wiring needed, which inherently increases system reliability and lowers the risk of connection failures.
-
Future-Ready IoT: Optional IoT modules enable remote monitoring, while UPS integration ensures the system stays online during power emergencies.
Quick Specs Table
| Feature | Details |
| Controller Type | MONT70 Integrated |
| Max Speed / Floors | 4 m/s / 48 Floors |
| Application | Machine-Roomless (MRL) |
| Safety Features | UCMP, Door Lock Protection |
| Optional Extras | IoT Monitoring, UPS, Specialized Encoder Cards |
