KM Elevator Traction Machine | 450KG – 630KG
 Specifications:
| Parameter | Specifications |
| Rope | 2:1 |
| Speed(m/s) | 0.5-1.75 |
| Load (KG) | 450-630 |
| Motor Weight (KG) | 320 |
| Sheave PCD DIA(mm) | 400 |
| Duty Cycle | S5-60% |
| Brake Type | SDZK-8500JR |
| Brake Torque (N.m) | 2*850 |
| Encoder | HEIDENHAIN ERN1387 |
Description
Description
KM Elevator Traction Machine | 450KG – 630KG
KM Elevator Traction Machine is the core power unit designed for efficient and dependable elevator operation. This crucial piece of elevator technology is engineered to provide the muscle for vertical transportation, moving the elevator car and its passengers smoothly and safely. The KM series is a versatile solution, perfectly suited for a wide range of applications from low-rise residential buildings to demanding high-rise buildings and busy commercial building complexes. Its primary job is to transport people and goods with a focus on reliability, quiet operation, and minimizing energy consumption.

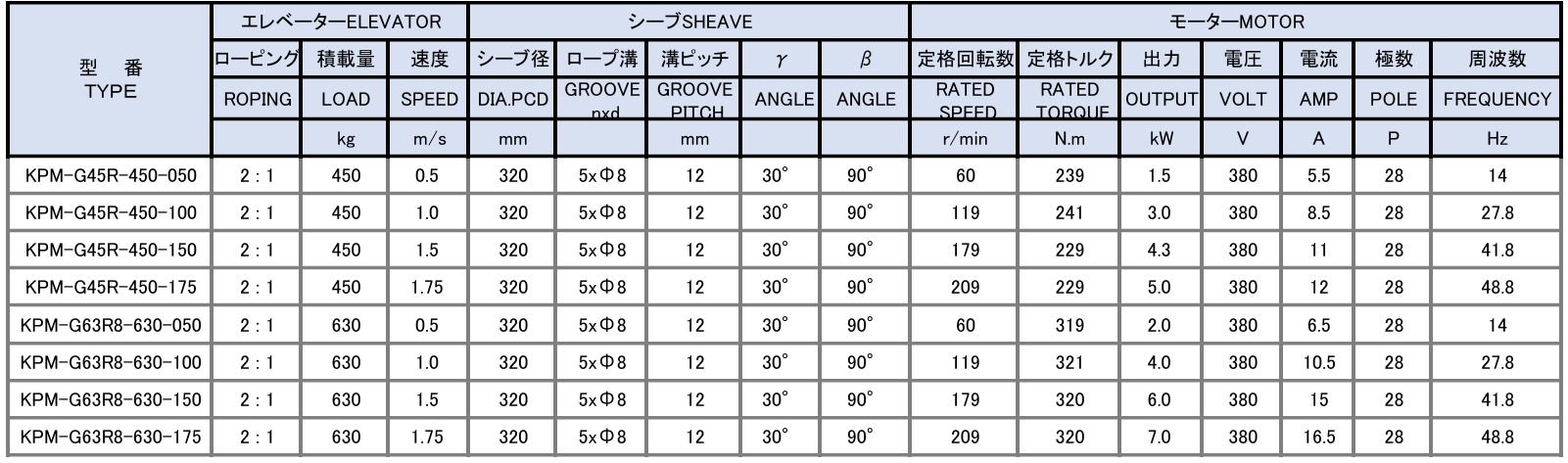

Technical Specifications:

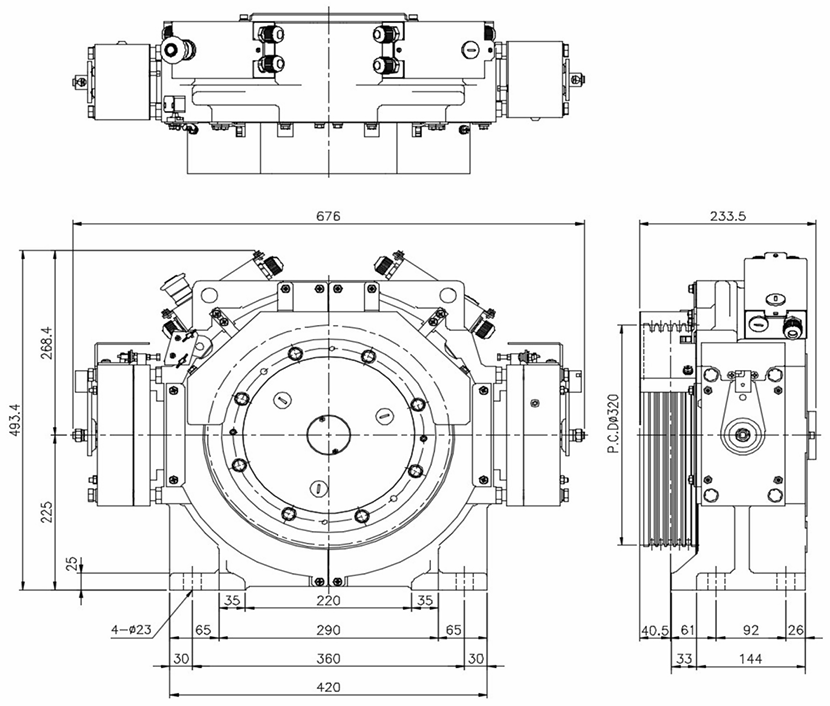

Dimensions:
