MONARCH NICE 1000+ Lift Control Inverter
Specification:
Model: NICE-L-H-4005, NICE-L-H-4007, NICE-L-H-4011, NICE-L-H-4015, NICE-L-H-4018, NICE-L-H-4022,
Power: 2.KW – 45KW
Description
Description

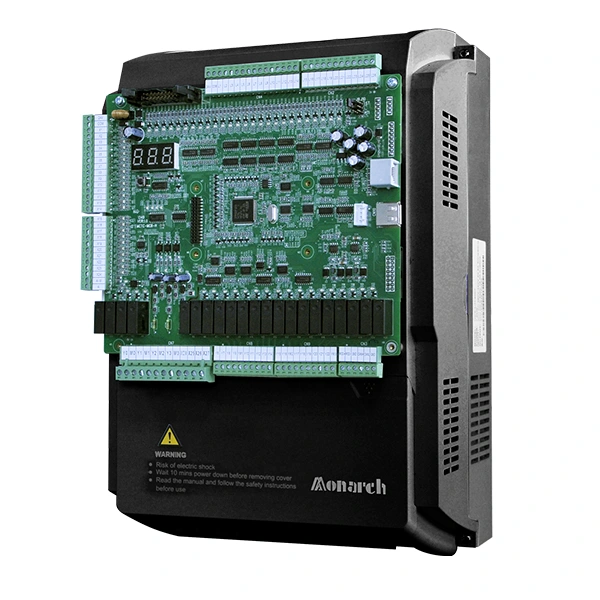

MONARCH NICE 1000+ Lift Control Inverter
MONARCH NICE 1000+ Lift Control Inverter represents the “all-in-one” philosophy that has made Monarch a leader in the industry. Because the motion logic and power electronics share a unified processor, the system can react instantaneously to changes in shaft conditions. This results in superior leveling accuracy and a reduction in the “jerking” sensations often associated with older, non-integrated VVVF systems.
For building managers and developers, the NICE 1000+ is a strategic choice for managing energy consumption. The inverter features intelligent power-saving modes that reduce the draw on the building’s electrical grid during standby periods. Whether installed in a low-rise apartment or a mid-rise commercial building, the NICE 1000 provides a robust, future-proof platform that simplifies maintenance and lowers long-term operational costs.
Key Technical Features
-
Unified Processing Architecture: By housing the elevator computer and drive inverter in one module, the NICE 1000+ reduces wiring by up to 30%, minimizing potential failure points.
-
Precision Vector Control: High-resolution speed regulation allows for a perfect glide, ensuring the elevator car stops exactly flush with the landing every time.
-
Scalable Load Management: The system intelligently calculates torque requirements based on the weight capacity and current occupancy, providing a consistent ride experience under all load conditions.
-
Broad Motor Support: Compatible with both traditional induction geared motors and modern permanent magnet synchronous (PMSM) machines, making it a versatile tool for both new installations and modernizations.
-
Advanced Safety Integration: Native support for emergency rescue operations and overspeed monitoring ensures the safety of everyone the system is designed to transport people.
Quick-Reference Specifications
| Feature | Specification |
| Controller Series | Monarch NICE 1000 (Integrated) |
| Control Logic | Full-Collective / Selective Collective |
| Drive Technology | Integrated VVVF / Open & Closed Loop Vector |
| Input Voltage | AC 380/400/415V, 3-Phase |
| Max Speed | Up to 1.75 m/s (Standard configuration) |
| Communication | CANbus / Parallel / Serial options |
| Target Application | Residential buildings and mid-rise commercial units |
Benefits for Vertical Transportation Systems
Incorporating the NICE 1000+ into your building’s infrastructure provides several distinct advantages:
-
Simplified Maintenance: Integrated diagnostics allow technicians to troubleshoot both logic and drive faults from a single interface.
-
Space Efficiency: The compact design is perfect for Machine Room-Less (MRL) applications or small, crowded machine rooms.
-
Cost Reduction: Fewer elevator components mean lower initial shipping costs and reduced labor hours during the installation phase.
