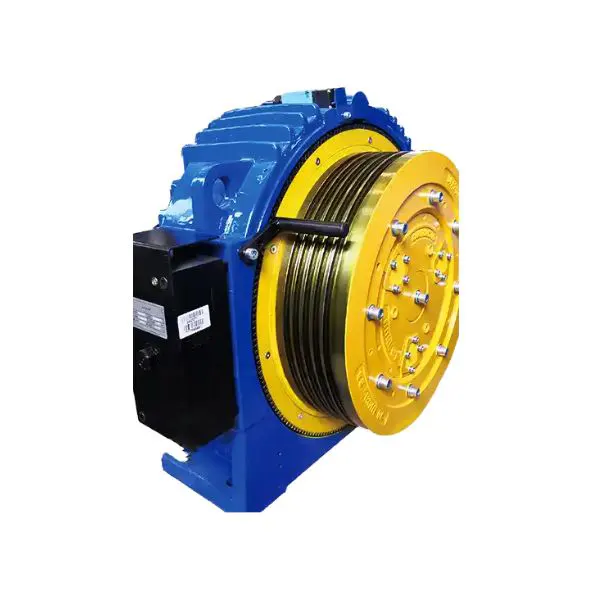

OTIS DAA20220DY Elevator Traction Machine
Specifications:
- Rated payload: 8000kg-1150kg
- Rated speed: 2.0m/s-2.5m/s
- Protection Class: IP41
- Insulation Class: F
- Number of motor poles: 32
- Maximum axial load: 3,500 kg
- Recommended lifting height: 135m
- Brake current: 1.53 A (20°C)
- Braking force (dual arms): 1,100 Nm to 1,450 Nm
- Operating mode: S5 40%
Description
Description
OTIS DAA20220DY Elevator Traction Machine – Reliable Vertical Transportation for High Rise Buildings
This genuine elevator traction machine is engineered to transport people safely and efficiently in residential buildings, high rise buildings, and commercial buildings. With a rated payload of 8000kg to 1150kg and a rated speed of 2.0m/s to 2.5m/s, the OTIS DAA20220DY delivers exceptional weight capacity for any elevator car. Its advanced design minimizes energy consumption while maximizing uptime, making it a smart choice for modern vertical transportation systems.
OTIS DAA20220DY Technical Specifications – Power, Protection, and Braking Force
The OTIS DAA20220DY features an IP41 protection class, guarding against solid objects and vertically dripping water. Its insulation Class F allows reliable operation at higher temperatures. With 32 motor poles, this traction machine provides smooth torque and low vibration, enhancing passenger comfort. Maximum axial load reaches 3,500 kg, and the recommended lifting height is 135 meters – ideal for medium to high rise buildings. Brake current is 1.53 A at 20°C, while dual-arm braking force spans 1,100 Nm to 1,450 Nm for instant, reliable stops. Operating mode S5 40% suits intermittent duty cycles common in elevator components.
OTIS DAA20220DY for Residential Buildings and Commercial Buildings – Low Energy Consumption
Install this traction machine in your elevator car to lower energy consumption without sacrificing speed or payload. It excels in hotels, hospitals, shopping malls, and mixed-use towers. The robust design reduces maintenance downtime and extends component life. Upgrade your vertical transportation network with the OTIS DAA20220DY – a perfect balance of power, efficiency, and safety. Order genuine elevator components from hsliftparts.com today and ensure your building moves people reliably, floor after floor.
Technical Data and Dimensions:
