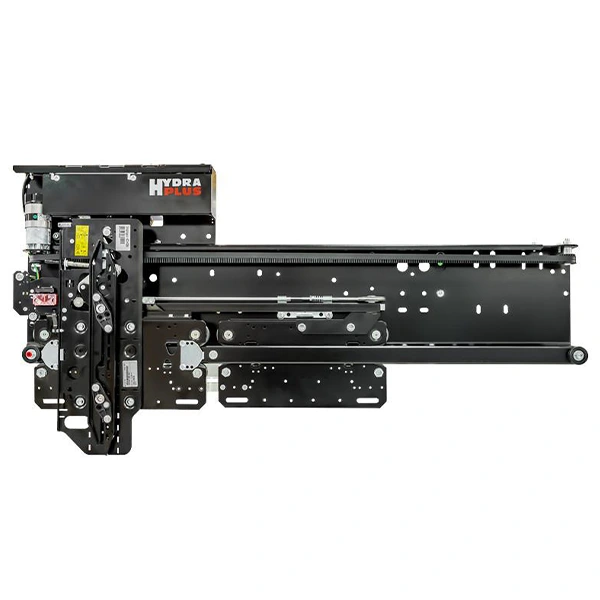

Premium WITTUR 4 Panels CO Door Operator | Ultimate Performance
Features:
Model: HYDRA PLUS
Max. power consumption: 80W
Max. speed: 0.5 m/s
Max. total panel weight: 130 kg
Protection class: IP20
Power supply: 127/230 VAC +/-20%,50/60 Hz
Safety device for passenger: Light curtain
Description
Description
Premium WITTUR 4 Panels CO Door Operator | Ultimate Performance
Table of Contents
1. Wittur Hydra Plus: General Advantages
| Feature | Advantage Details |
| High Flexibility | Multifunctional door designed for maximum application adaptability. |
| Modernization Ready | Wide range of options and special couplers to interface with existing landing doors from other brands. |
| Operation Versatility | Available as automatic or semi-automatic for swing door installations with a car door lock. |
| Regulatory Compliance | Fully compliant with EN81-20/50 standards. |
| Smart Modularity | Offers various combinations between drives and models. |
| Factory Pre-Adjusted | Tested at the factory with advanced self-learning functions for opening/closing speeds and times. |
| Standard Safety | Car door lock available as standard for automatic doors. |
2. Fast & Easy Installation
| Feature | Installation Details |
| Customizable | Adaptations at existing components and specially designed parts are possible. |
| Quick & Easy | No need for additional on-site adjustments, significantly reducing installation time. |
| Plug & Play | Door operators arrive pre-adjusted and factory tested, ready for immediate setup. |
3. Performance & Smooth Operation
| Feature | Performance Details |
| Energy Efficient | Engineered for low energy consumption. |
| Smooth Operation | Maintains ultra-smooth motion even at high door speeds. |
| Accessibility Compliant | Closing times adhere strictly to rules regarding accessibility and people with disabilities. |
| Smart Force Control | Features a fully electronically controlled closing force. |
| Scalable Drives | Available with ECO+, MIDI+, and SUPRA drives depending on the traffic demands of the building. |
| Acoustic Comfort | Optional 56Ø mm upper rollers made of specific materials to ensure maximum passenger comfort and reduced operating noise. |
4. Maintenance & Longevity
| Feature | Maintenance Details |
| Fewer Spares | A small number of parts translates to reduced inventory needs and a longer component lifetime. |
| Technician Friendly | Simple design makes it exceptionally easy to maintain. |
Structure drawing of standard door
FOUR PANELS CENTRAL OPENING CAR DOOR, TYPE42/C PL=1,200~3,200
